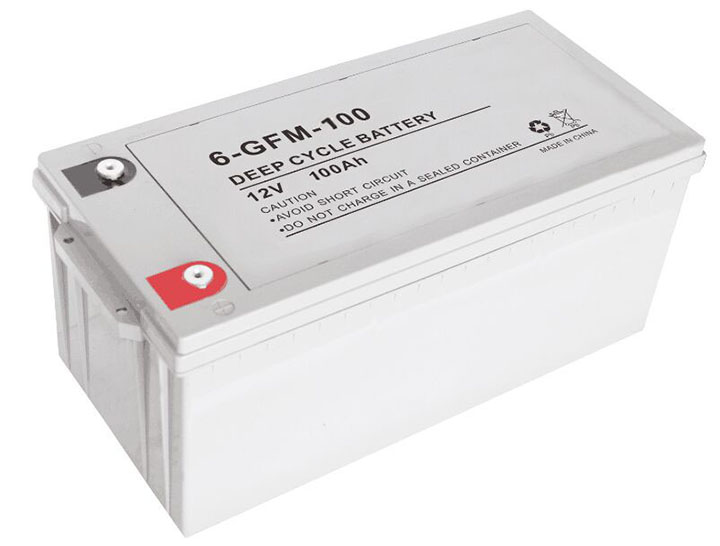

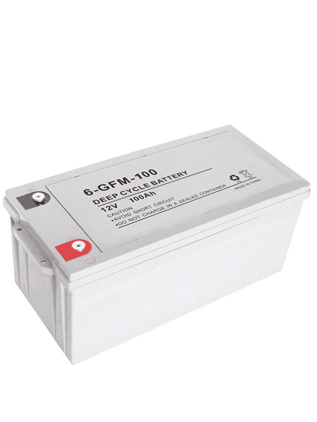

100AH 12v Gel Deep Cycle Battery
Wide operating temperature range from -25°C to 45°C
Sealed and maintenance free operation
Low self-discharge rate and long shelf life (9 months at 25°C)
ABS containers and covers
No memory effect, thick flat plate with high Tin low Calcium alloy
Absorptive Glass Mat Technology (AGM System)
Safety valve installation for explosion proof
Long Service Life, Float or Cyclic
Description
Applications
Solar System (off-grid) and UPS system
Solar Pump
Firefighting equipment standby power supply
Medical treatment equipment, Alarm system
Telecommunication system,, Railway station,
Ship Equipment, Military Equipment
Control systems, Emergency lamp
| Battery Model | 6GFM-100 / 12V100Ah | |||
| Capacity (25℃) | 10Hr(10A,1.80V) | 5Hr（17A,1.80V） | 3Hr(25A,1.80V) | 1Hr(55A,1.80V) |
| 100AH | 85AH | 75AH | 55Ah | |
| Dimensions | Length | Width | Height | Total Height |
| 331mm | 172mm | 215mm | 218mm | |
| Approx Weight | 27.00KG | |||
| Internal Resistance | 7.1mΩ | |||
| Max Discharge Current | 1104A(3 Sec.) | |||
| Self Discharge | ≤2% per month (25℃) | |||
| Charge Voltage 25℃ | Cycle Use | Float Use | ||
| 13.98V(-21mV/℃),max charge current:20A | 13.38V(-21mV/℃) | |||
