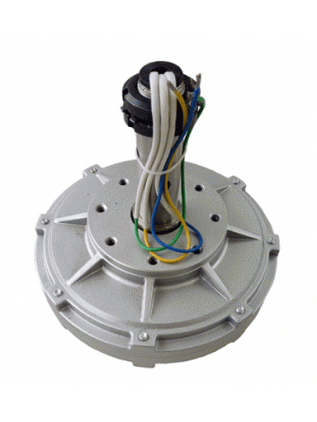

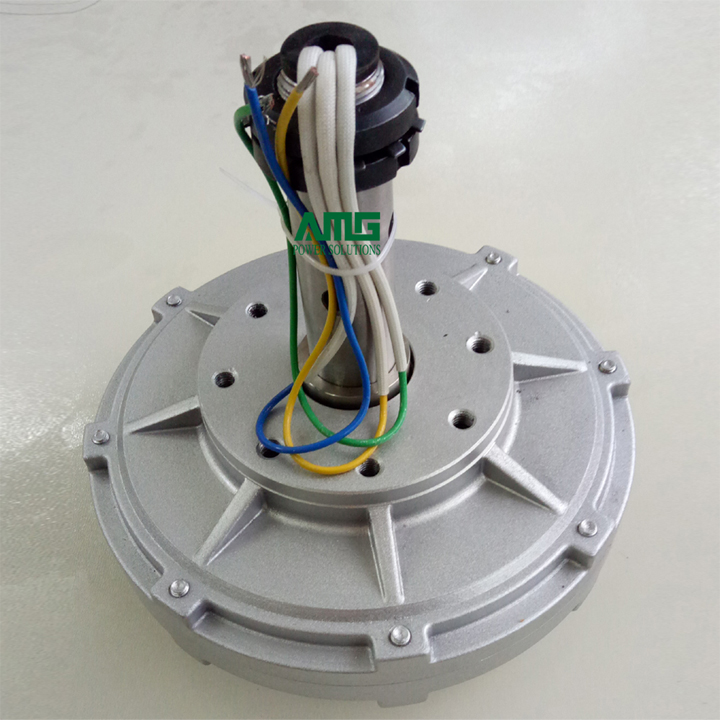

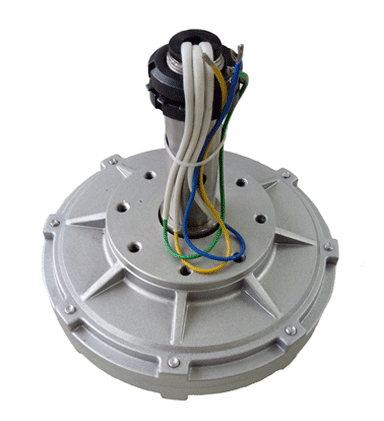

100W Disc Coreless Axial Flux PMG
- Coreless, anhysteresis, slotless, have low starting torque.
- No iron loss, have high efficiency
- Adopt unique coreless precision winding technology design precision coil
- Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.
- Low speed direct driving, no torque fluctuations
- Compact structure, high ratio of power to volume
- No iron loss, low calorific value,small temperature rise
- Simple structure, easy to install
- The brushless structure, free maintenance
Description
100w coreless permanent magnet alternator
different rpm available, 130/200/300/500rpm
voltage after rectification 14/28vc
customization accepted,please contact us for details
Product Advatange
Coreless permanent magnet generator
High-stability Nd-Fe-B materials
Low Speed of wind of starting up
Low rated speed/Higher Reliability etc.
The specific outer rotor magnetic circuit is designed in a way that the products have high generating efficiency, light weight, low starting torque, appealing appearance, easy installation and higher electric performance and use performance than kindred products.
| Model | AMG0.1KW-200 |
| Rated power(kw) | 0.1 |
| Rated speed(rpm) | 250 |
| Rated voltage(vdc) | 14/28 |
| Rated Current(A) | 5.2/2.6 |
| Efficiency | >75% |
| Resistance (Line-Line) | <3.5 |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(500V DC) |
| Leakage level | <5 ma |
| Start torque(N*M) | <0.05 |
| Phase | Three phase |
| Structure | outer rotor |
| Stator | coreless |
| Rotor | Permanent magnet |
| Pole(mm) | 220 |
| Gen. Diameter(mm) | 30 |
| Gen. Length(mm) | 212 |
| Gen. Weight(kg) | 8 |
| Shaft. Diameter | Aluminum ( Alloy ) |
| Housing Material | Steel |
