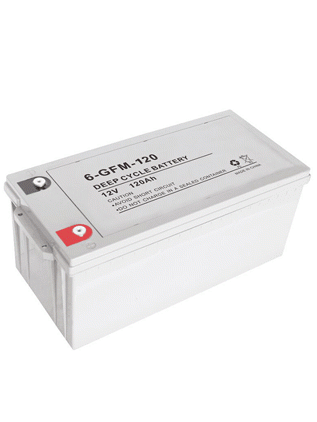

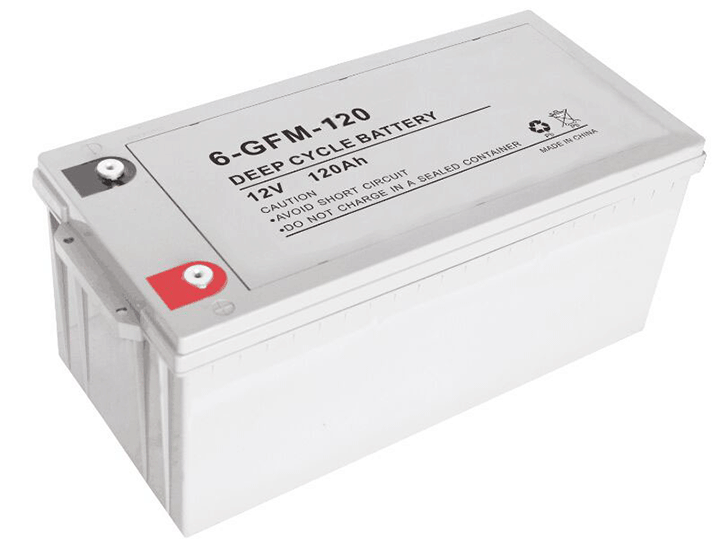

120AH 12v Gel Solar Battery
- Wide operating temperature range from -25°C to 45°C
- Sealed and maintenance free operation
- Low self-discharge rate and long shelf life (9 months at 25°C)
- ABS containers and covers
- No memory effect, thick flat plate with high Tin low Calcium alloy
- Absorptive Glass Mat Technology (AGM System)
- Safety valve installation for explosion proof
- Long Service Life, Float or Cyclic
Description
Applications
Solar System (off-grid) and UPS system
Solar Pump
Firefighting equipment standby power supply
Medical treatment equipment, Alarm system
Telecommunication system,, Railway station,
Ship Equipment, Military Equipment
Control systems, Emergency lamp
| Battery Model | 6GFM-120 / 12V120Ah | |||
| Capacity (25℃) | 10Hr(11.16A,1.80V) | 5Hr（20.4A,1.80V） | 3Hr(30A,1.80V) | 1Hr(66A,1.80V) |
| 120AH | 102AH | 90AH | 66Ah | |
| Dimensions | Length | Width | Height | Total Height |
| 406mm | 174mm | 210mm | 212mm | |
| Approx Weight | 35.6.00KG | |||
| Internal Resistance | 6.8mΩ | |||
| Max Discharge Current | 1196A(3 Sec.) | |||
| Self Discharge | ≤2% per month (25℃) | |||
| Charge Voltage 25℃ | Cycle Use | Float Use | ||
| 13.98V(-21mV/℃),max charge current:20A | 13.38V(-21mV/℃) | |||
