Horizontal Wind Turbine

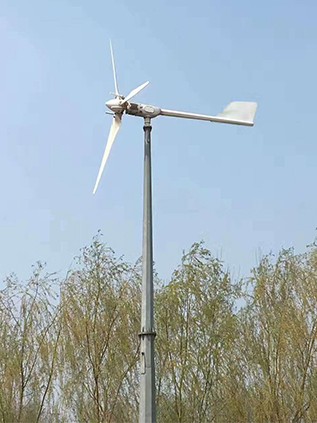

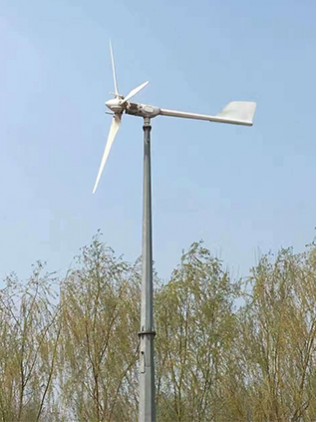

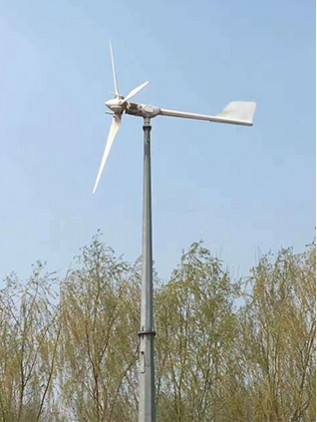

3kw horizontal home wind turbine generator
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in high speed
3. Streamlined wind turbine body and blade outline design
4. dynamic-balanced high-rigidity FRP materials blades
5. Noice level below 45dB around the wind turbine tower
6. Use magnetic saturation technology, with 20years designed life;
7. Select high quality bearing, free to maintenance;
8. Anti-twist device, generator can whirl in each direction
9. Anti strong wind, the blade protect itself automatically,
10. Supply matched controller/inverter, make the system more stable
Description
Model | HC-3000 |
Rated power | 3000W |
max Power | 4.5Kw |
Generator | |
generator type | 3phase permanent magnet synchronization generator |
Max start torsional moment n/m | 3 |
rated rpm | 300 |
rated voltage | 48V |
start wind speed | 3(m/s) |
rated speed | 9m/s |
woking wind speed | 3.0-20(m/s) |
Safety wind speed | 40(m/s) |
Blades | |
blade diameter | 4m |
material of the blades | Fiberglass-Reinforced Plastic |
NW | |
body weight except tower | 120kg |
Other | |
suggested controller | 48V100A |
suggested battery | 12v200AH*4pcs |
