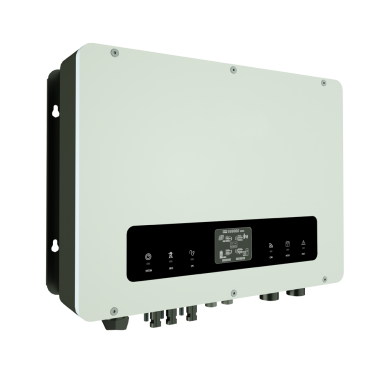

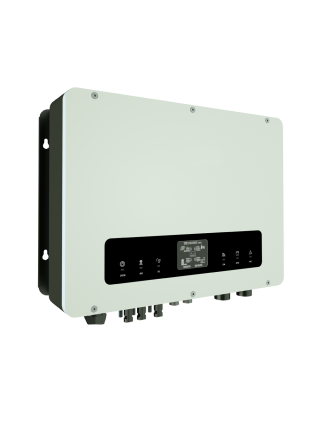

4KW~12KW Solar Hybrid Inverter With Battery Backup

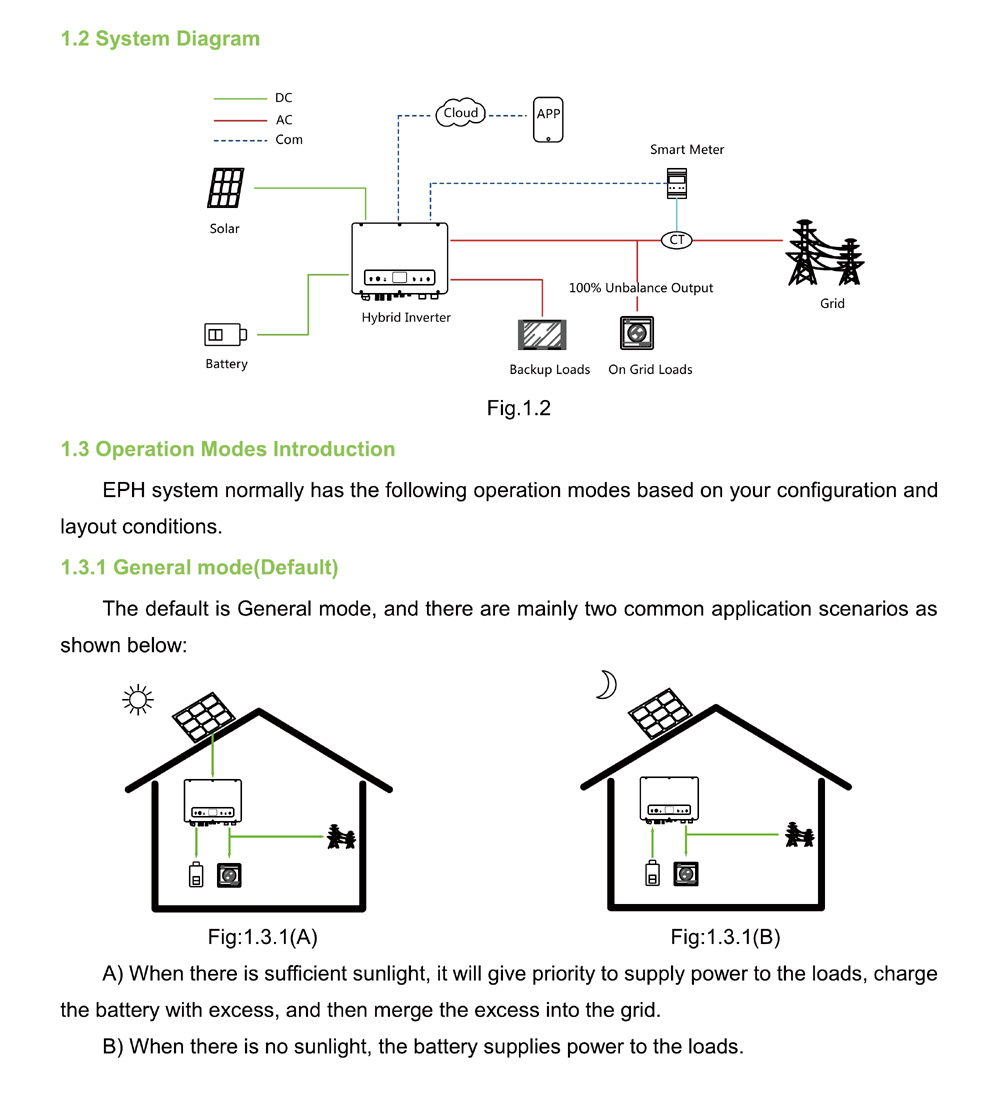

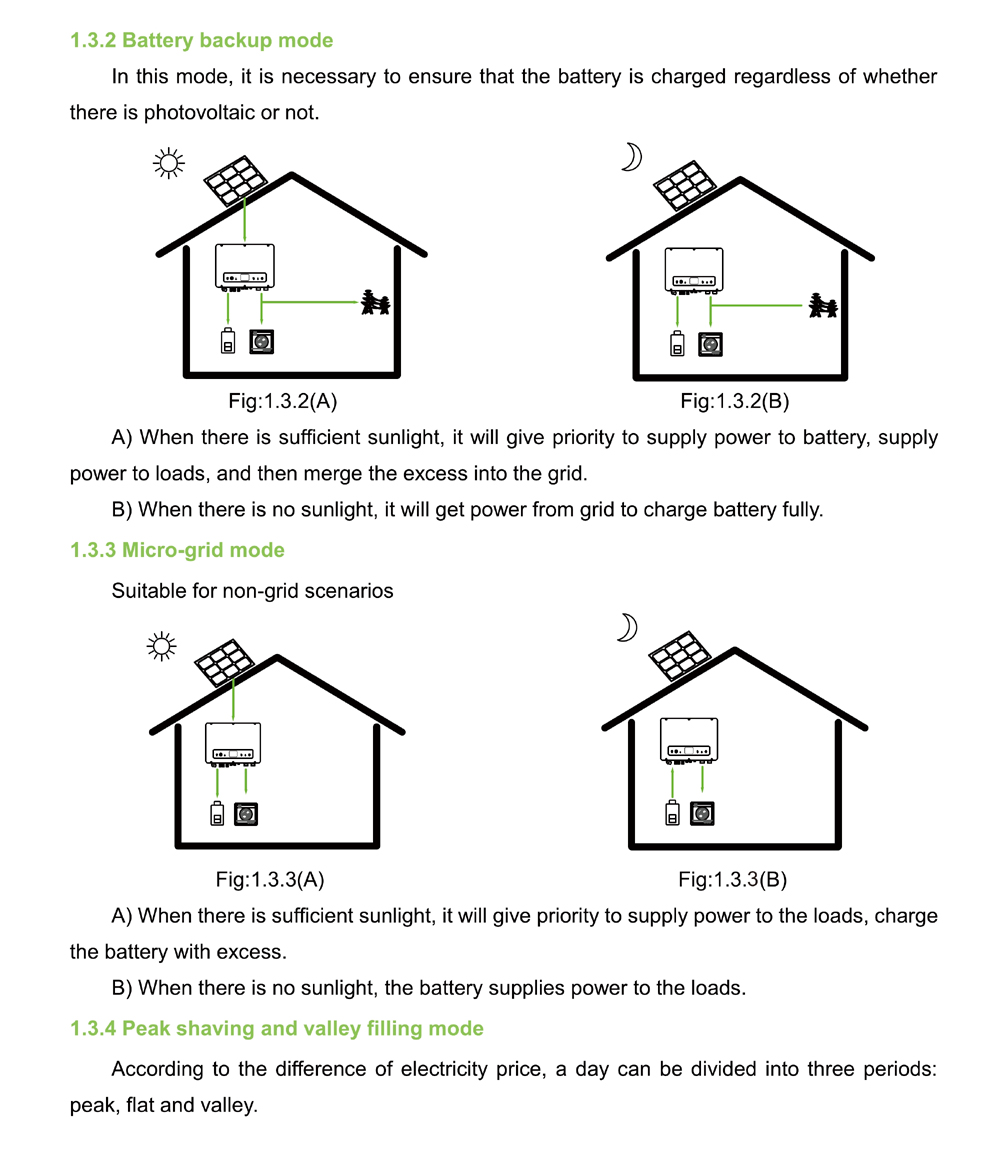

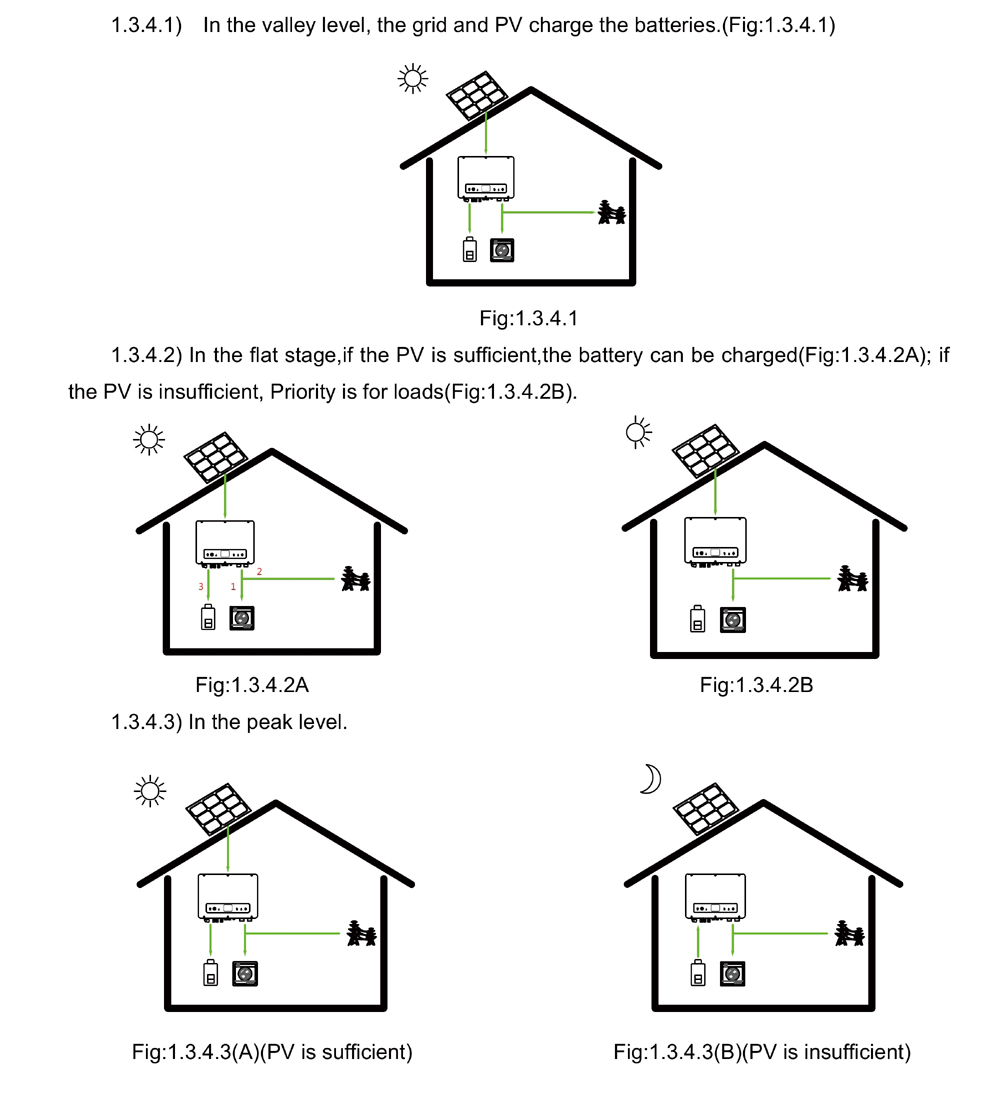

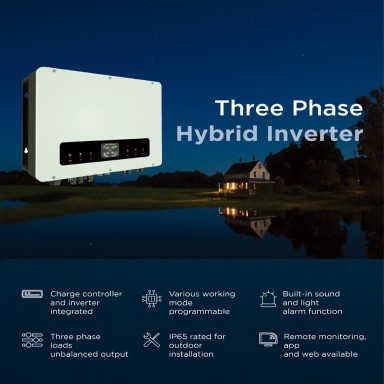

EPH series three phase solar energy storage inverter can be used for both on grid and off grid PV systems, it integrates controller and inverter. During the daytime, the PV array generates electricity which could work under different modes providing power either to the loads, or to the grid or charge the battery according to the settings. The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it. Moreover ,the inverter can give three phase unbalanced output according to set up, to make a most flexible power solution.
Description
Model No | EPH4KTL | EPH5KTL | EPH6KTL | EPH8KTL | EPH10KTL | EPH12KTL |
Solar Input (DC) | ||||||
Max. DC power | 5500W | 6500W | 7500W | 9500W | 11500W | 13200W |
Max. DC voltage | 1000Vd.c | |||||
MPPT voltage range | 250~850 Vdc | |||||
Max. input current | 13A*2 | |||||
Number of MPP trackers | 2 | |||||
Strings per MPP tracker | 1 | |||||
Battery Input | ||||||
Battery type | Li-Lon | |||||
Battery voltage range | 180-600V | |||||
Maximum charge/discharge current | 25/25A | |||||
Charge strategy for Li-tou Battery | Self-adaptation to BMS | |||||
Output (AC) | ||||||
AC nominal power | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
Max AC apparent power | 5000VA | 5500VA | 7000VA | 8800VA | 11000VA | 13200VA |
Nominal AC output | 8A | 10A | 12A | 15A | 17A | 20A |
AC output range | 50/60Hz; 280-490Vac(Adj) | |||||
Power factor | 0.8 leading ...0.8 lagging | |||||
Harmonics | <3% | |||||
Grid type | 3W/N/PE | |||||
Three-phase unbalance output | 100% | 80% | ||||
AC Output(Back Up) | ||||||
Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
Norminal output voltage | 400/380V | |||||
Norminal output frequency | 50/60Hz | |||||
Output THDV(@Liuear Load) | <3% | |||||
Efficiency | ||||||
Maximum conversion efficiency | 98.00% | 98.00% | 98.20% | 98.20% | 98.20% | 98.20% |
European efficiency | 97.30% | 97.30% | 97.50% | 97.50% | 97.50% | 97.50% |
MPPT efficiency | 0.999 | |||||
Safety & Protection | ||||||
DC reverse-polarity protection | yes | |||||
DC breaker | yes | |||||
DC/AC SPD | yes | |||||
Leakage current protection | yes | |||||
Insulation impedance Dectection | yes | |||||
Residual current protection | yes | |||||
Output short circuit protection | yes | |||||
Battery reverse connection protection | yes | |||||
General Parameters | ||||||
Dimensions | 480mm*400mm*180mm | |||||
Weight | 27kg | |||||
Operating temperature range | -25℃... 60℃ | |||||
Degree of protection | IP65 | |||||
Cooling concept | Natural convection | |||||
Topology | Transformerless | |||||
Display | LCD | |||||
Humidity | 0-95%, no condensation | |||||
Communication | GPRS/WIFI(Optional) | |||||
BMS communication | CAN/ RS485 | |||||
Meter communication | RS485 | |||||
Warranty | 5 Years |
