Horizontal Wind Turbine

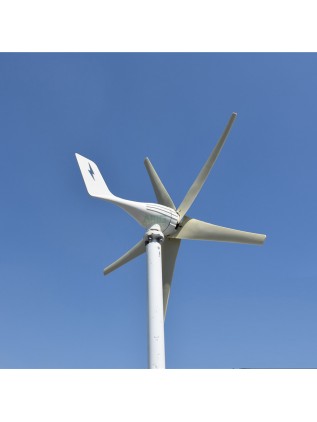

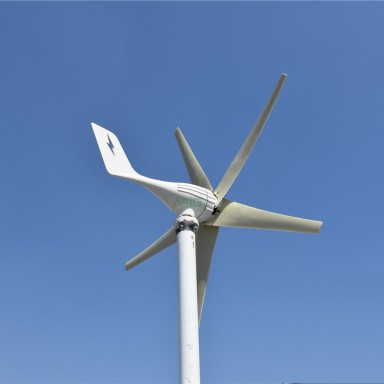

LX Series Small Wind Turbines for Boat/ Streetlight Use(300w-600w)
Low start up wind speed, 2m/s, this wind generator, we would recommend 5 blades model for low wind area, and 3 blades for average high wind aea.
Low vibration running, the blades with nylon composite materials ,using new art of precision injection molding,with the optimization of aerodynamic design and structural design, and with automatic yaw, safe and reliable operation.
High output, permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque and enhance generation perfomance.
IP65,applicable in harsh environment, aluminum alloy body,anti-corrosion treatment,resistant to to acid and alkali, applicable in salty and other harsh environment.
20-year long service life, internal motor labyrinth design, external all fasteners use high strength stainless steel products, make the wind generator durable.
Description
| Model | LX300 | LX400 | LX500 | LX600 |
| Rated power | 300W | 400W | 500W | 600W |
| Maximum power | 360W | 460W | 560W | 660W |
| Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Start-up wind speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated wind speed | 13m/s | 13m/s | 13m/s | 13m/s |
| Survival wind speed | 50 m/s | 50 m/s | 50 m/s | 50 m/s |
| Top net weight | 8kg | 9kg | 9.5kg | 10kg |
| Wheel diameter | 1.4m | 1.6m | 1.6m | 1.6m |
| Number of blades | 3PCS/5PCS | |||
| Blade material | nylon fiber | |||
| body material | casting aluminium alloy | |||
| Generator | Three-phase permanent magnet ac synchronousGenerator | |||
| Control System | Electromagnet | |||
| Insulation | Insulated | |||
| Tower | Cable / Independent tower (optional) | |||
| Working Temperature | -40ºC-80ºC | |||
