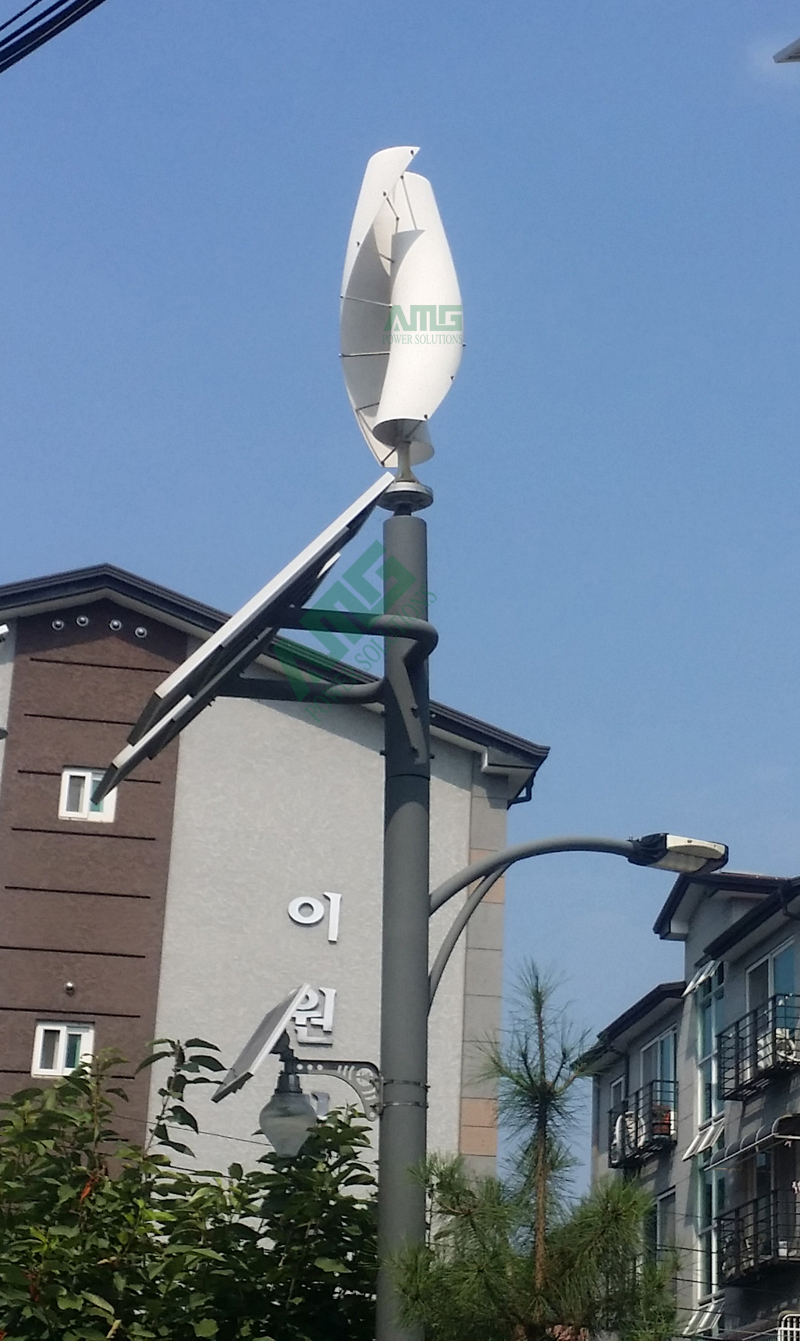

Wind Solar Hybrid Streetlight System

System Description:

●   wind solar hybrid street lighting system is a smart green system totally in-dependant of grid power.

●   the streetlight hybrid system consists of wind turbine and solar panels, LED light, deep cycled batteries,smart controller, streetlight pole, and connection cables.

●  LED streetlight, makes wind and solar energy complementary, the combination of renewable sources on a LED lamp together with battery storage ensures constant power supply.

●  Thanks to the smart controller software, each streetlight can be remotely monitored.

Advantages:

● stable,  combination of wind and solar, complementary energy source

● safe, the wind solar hybrid streetlights use low voltage LED, 12v or 24v,no risk of electric shock.

● Convenient, installation easier, no cable excavations,no pipes laying,better roadside positioning.

● cost saving, a lot of traditional electric light installation work is saved, such as the excavation of cable trenches, the laying of hidden pipes, pipeline threading, back-filling and other basic projects, at the same time, a large number of electrical equipment such as transformers, distribution cabinets, distribution boards is saved.

● flexible customization,  daily lighting time, lighting luminance, back up days etc can be customized.

● wide application, it can be applied in remote villages, desert land, grass land, high way street, island lighting, forest, communication base etc

Components introduction

● Wind turbine

300w,400w,500w,600w wind turbine/wind generator ,12v or 24v, low wind start up , strong wind survival, manual braking or electronic auto-braking available, beautiful running.

● Solar modules

Mono or poly solar panels, various size available, 100w,150w,200w,250w etc, 25 years lifespan.

● Intelligent controller

Remote control, light/time control available, protection against over-discharge,over-charge,over-loading,under-voltage etc, some controller integrate boost function, for example,when output of wind turbine and solar panel is between 12-24v, it can boost to be 24v to be utilized.

● Battery

Deep cycle battery, AMG lead acid / Gel / Lithium etc,  maintenance free

● LED lamp

12v , 24v, low power consumption, match luminance with different pole height.

● Pole

Galvanized pole, anti-rust, anti-salty, different light arm design, different height available.

Recommended Application

● Municipal Street, residential streets, country road, parking lots, landscape lighting, roundabouts, camp site, campus,island, forest,communication site.
